Fiamm Jericho DIN | VOSS M16

FIAMM Jericho DIN / VOSS M16
(FIA928050Z)

The FIAMM Jericho Air horn is a compact Truck air horn for professional use.
Air horn with built-in electronic valve for trucks and buses.
Fiamm supplies several variants of this type of horn, with both electrical and pneumatic connections differing.

This Jericho is equipped with a DIN connector and a VOSS M16 pneumatic connection.
Please note: An air tube cannot be connected directly to the pneumatic connection.
This model is used for Mercedes trucks.

Delivery:

1x Jericho Air horn
1x Connection Cable


Productinfo
Material	PA66 , Steel

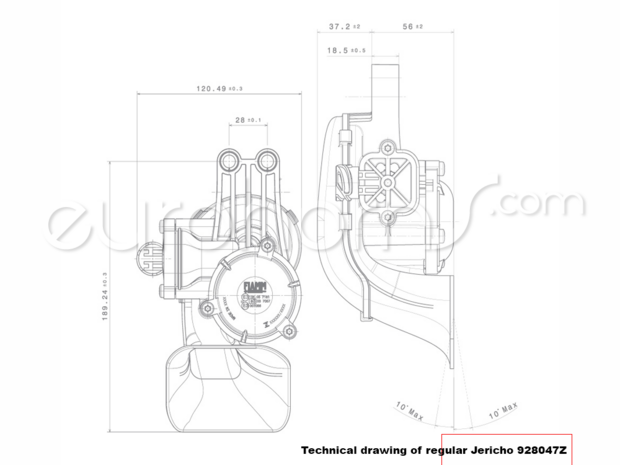

Measurements (HxWxL)	20cm x 12,5 cm x 9,5cm
Weight	390 gr.
Voltage	24v
Ampere	0,8 A
Air Pressure (Bar)	4-8 bar (amount of pressure influences dB's)
Soud Pressure (at 2m)	118 dB
Fiamm Code	928050Z
Connector Type:	DIN (see download)
Air Connection	VOSS M16 (Female)
EU-Registration	10 ECE 28 ECE
Made In	Italy
HS Code	85123090
